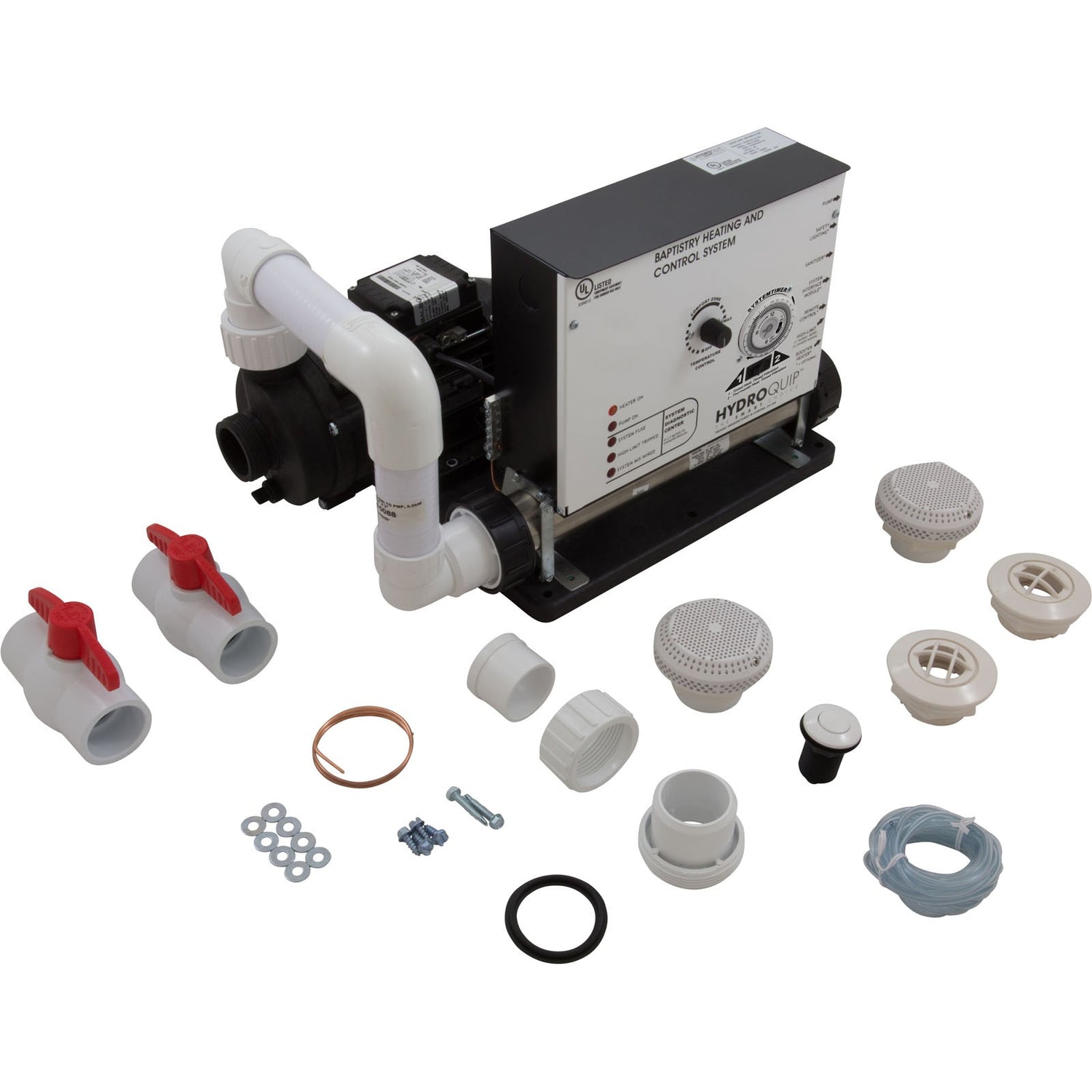

Baptismal System, H-Q BES-6000T, 5.5kW 230v, 0.75hp, w/Timer : BES-6000T

Baptismal System, H-Q BES-6000T, 5.5kW 230v, 0.75hp, w/Timer

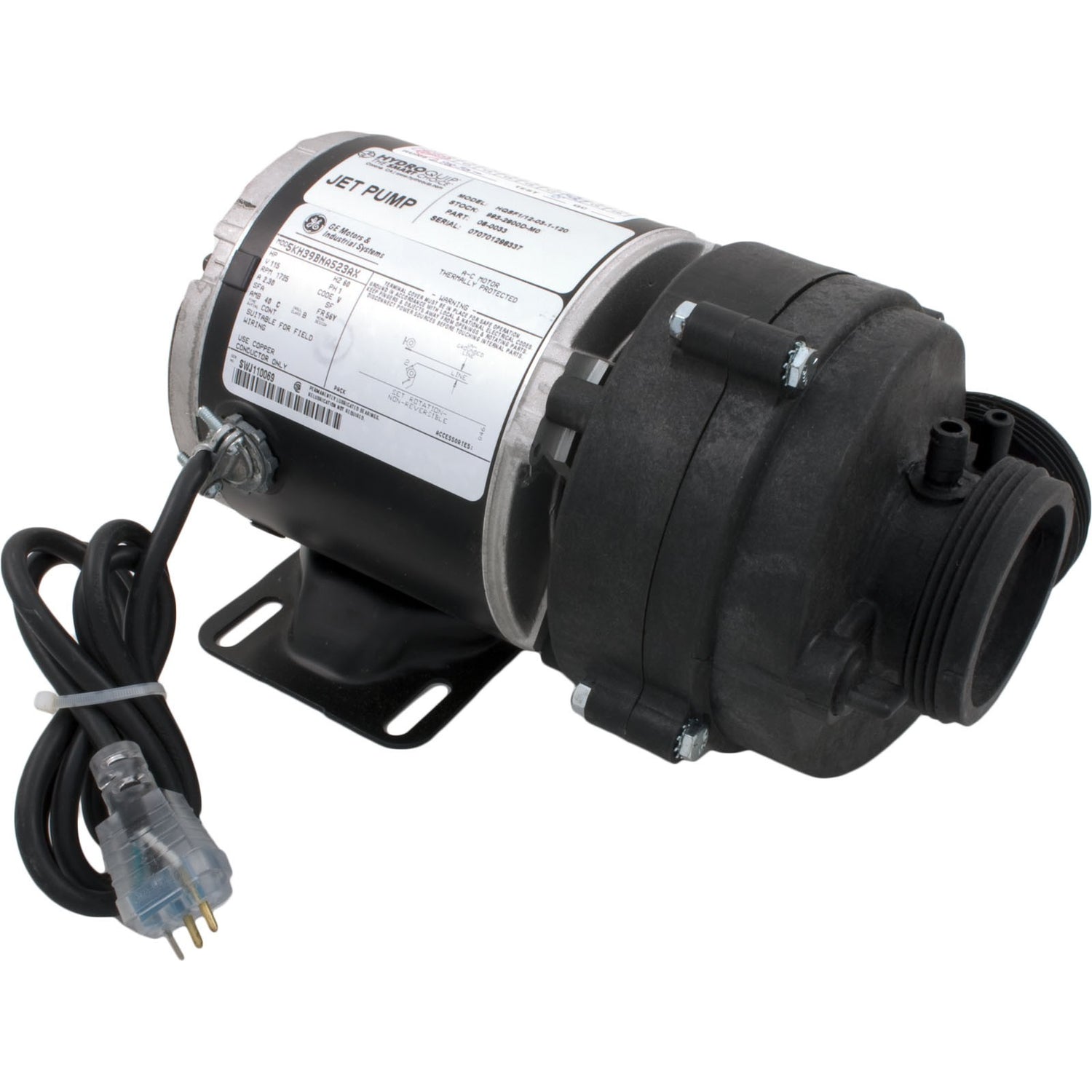

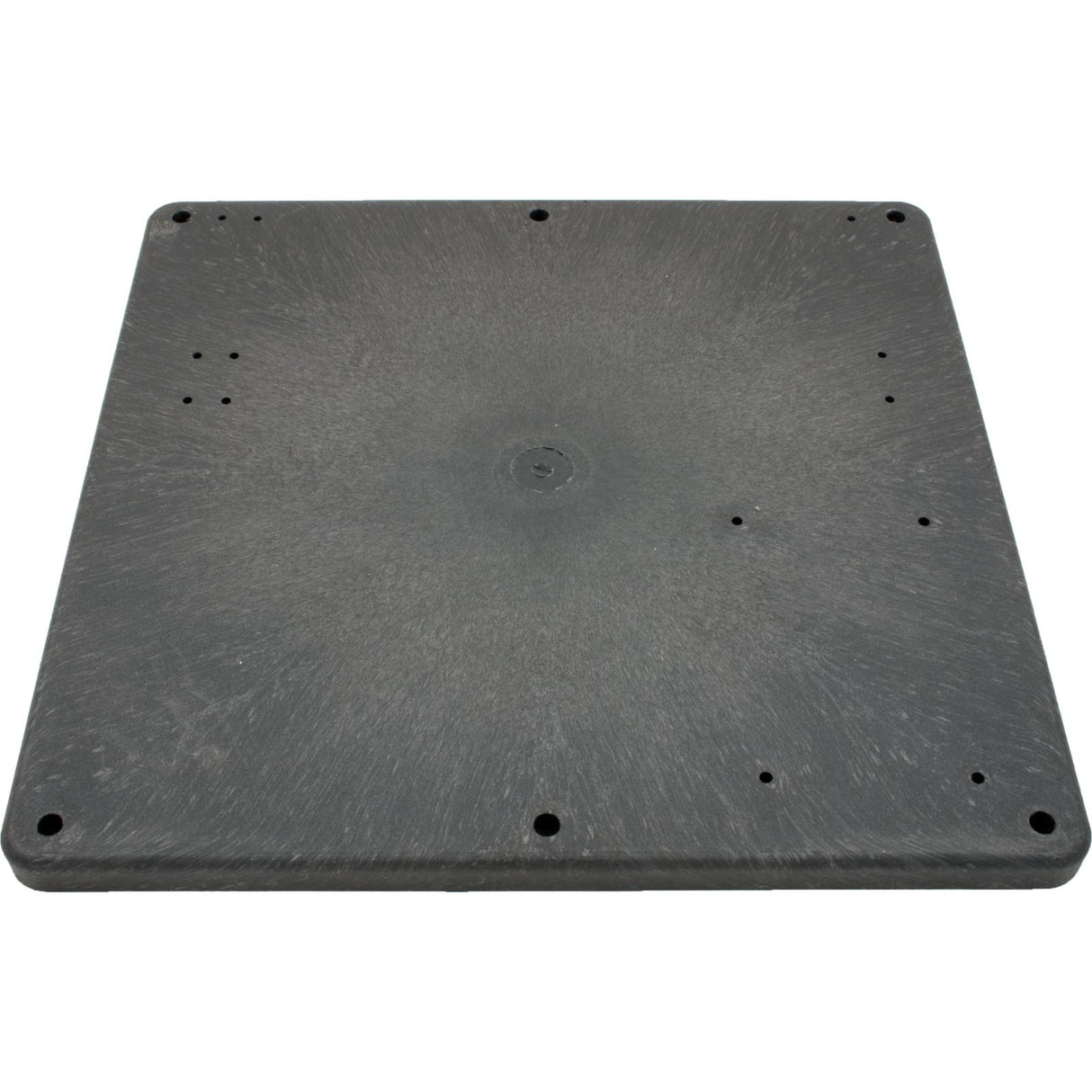

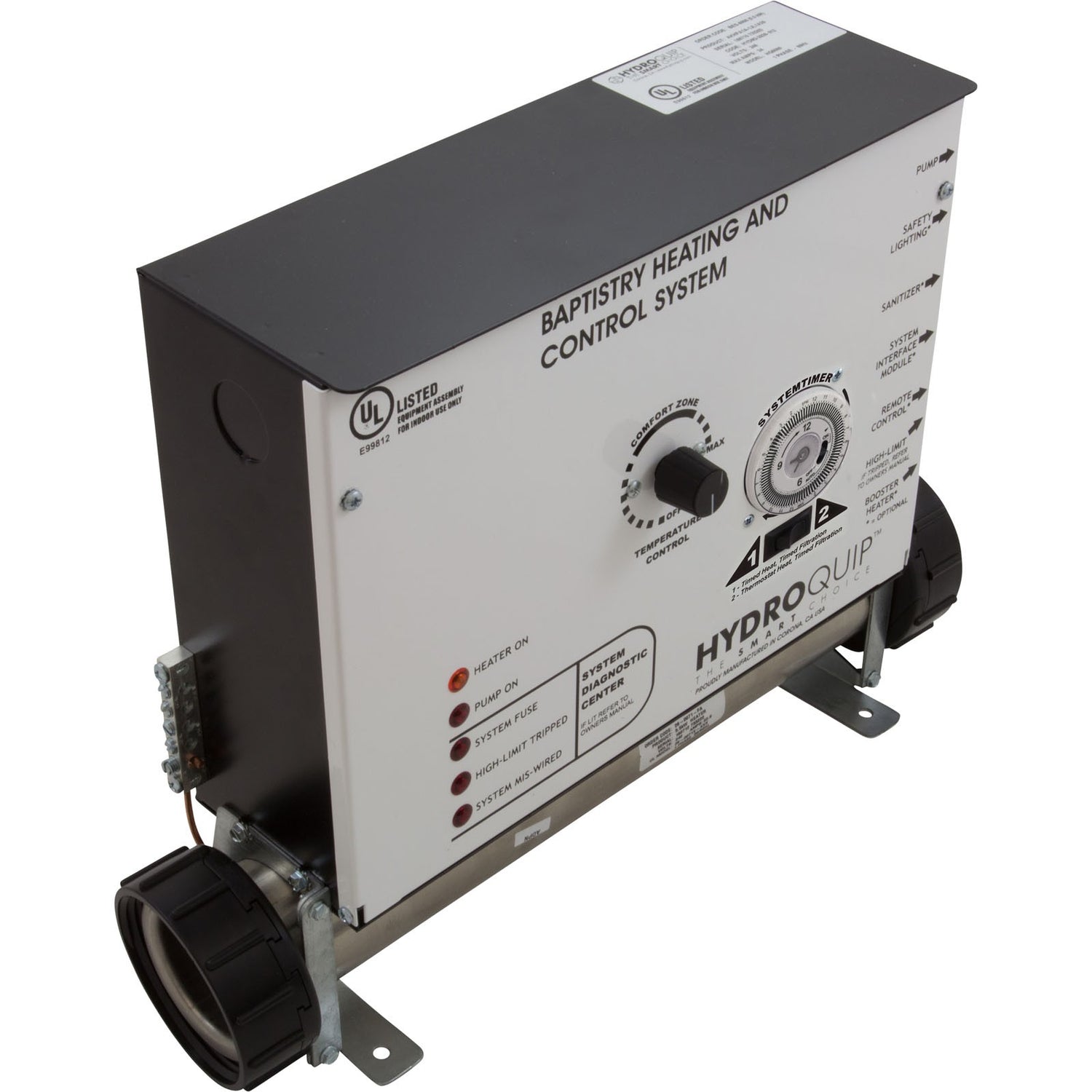

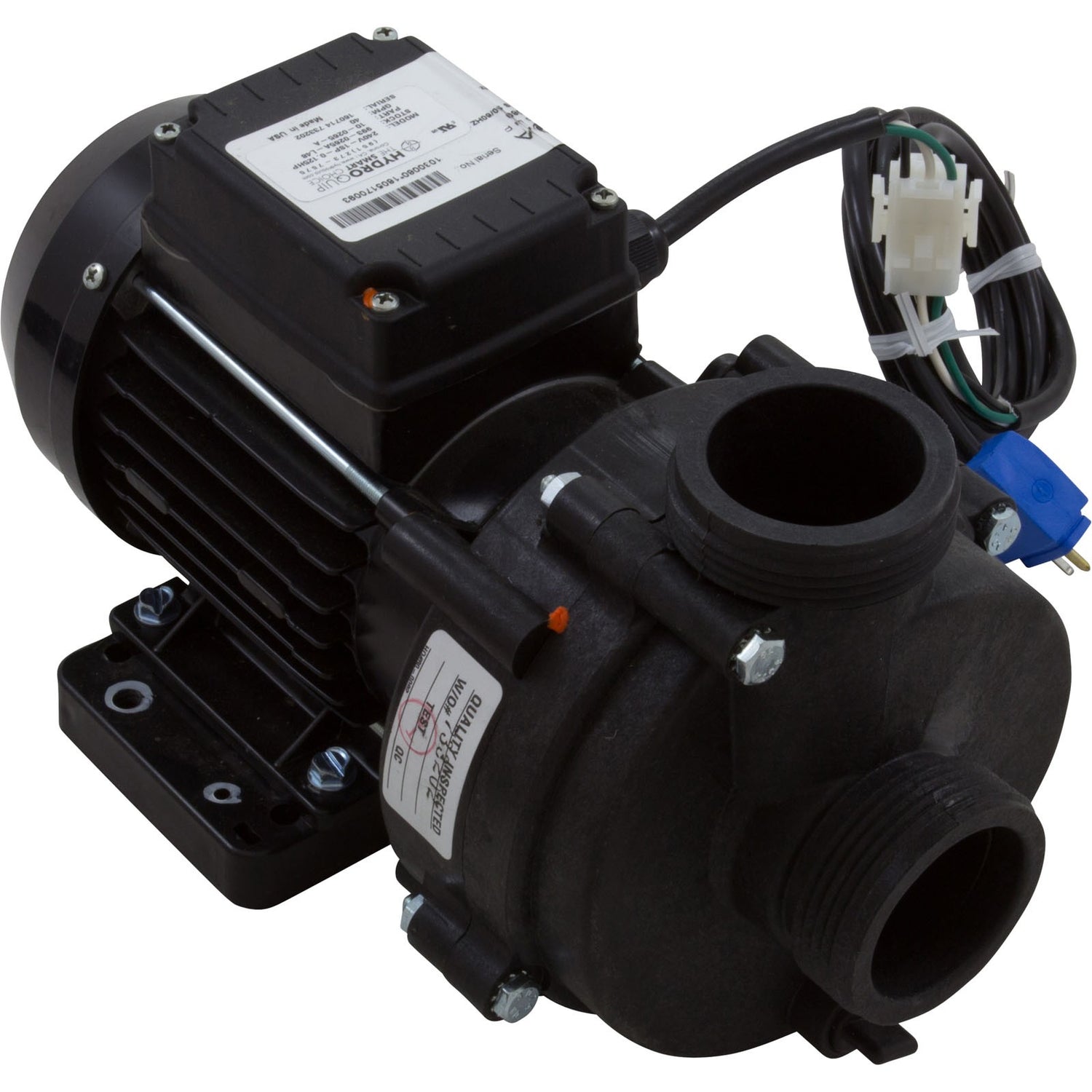

Baptismal Equipment System Standard Features: 5.5 or 11KW Heater in 304SS Housing 3/4HP, 230V Pump 24hr Timer with Mode Switch Full Range Thermostat High Limit Protected Pressure Switch Activated Base Mounted
Exclusive Features: “VDS” Visual Diagnostics Heater “ON” Indicator Light Detailed Installation Manual Detailed Owners Manual Detailed Wiring Diagram STANDARD OPTIONS BY MODEL
MODEL BES6000T BES6005T Voltage 230* 230* Pump Voltage 230V 230V Pump HP 3/4 3/4 Pump Speed 1 1 Heater Wattage 5.5kW 11kW Timer YES YES Sanitizer 115V 115V Light Optional Optional APPROVAL LISTINGS: UL LISTED, INDOOR ONLY, UL1563
ELECTRICAL SPECIFICATIONS: SINGLE PHASE, *4-WIRE SERVICE, 60HZ
MINIMUM SPACE REQUIRED: 15”H X 33”W X 17”D
TOTAL AMP DRAW: BES6000T 30A, CIRCUIT BREAKER SIZE 40
TOTAL AMP DRAW: BES6005T 53A, CIRCUIT BREAKER SIZE 70
SHIPPING DIMENSIONS: 23”H X 21”W X 8”D (All Systems)
SHIPPING WEIGHT: BES6000T 32.21lbs., BES6005T 36.5lbs.
WARRANTY: 1 YEAR LIMITED WARRANTY
Baptismal Complete: Complete Baptismal
Manufacturer: Hydro-Quip
Model: BES-6000T
Heater Wattage: 5.0kW
Voltage: 230v
Total Amperage: 30A
Timer: With TimerPump Size: 3/4 hpGFCI: No

Replaces
9284-510,9284-511,950484,BES-6000T-HC,BES-6005T,ES5100BAP5KW,ES9005BAP5KW,
