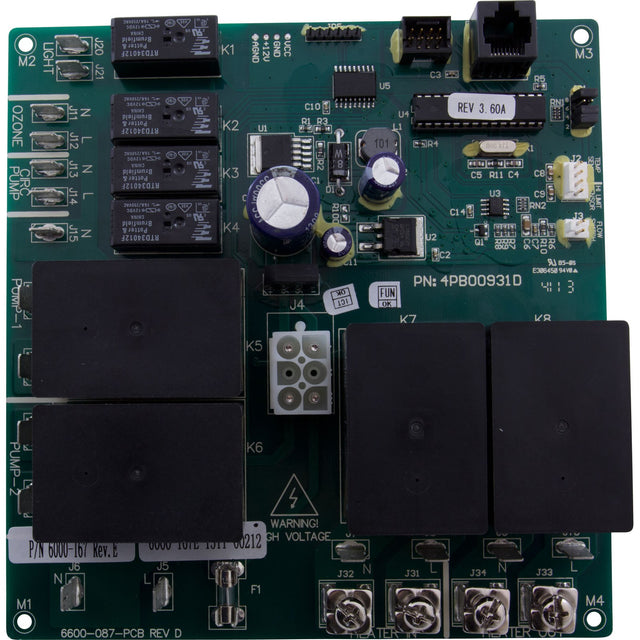

PCB, Sundance J-LX/J-LXL, Universal (w/Circ Pump Only) : 6600-726

PCB, Sundance J-LX/J-LXL, Universal (w/Circ Pump Only)
Replaces Sundance 6600-288. Also replaces 6000-167.

Includes Micro Chip 3.61A. For 2-Pump systems. This board operates a circulation pump. If the spa does not have a circulation pump, then use 59-453-1026.


Jumper settings are as follows:

Jumper 2 - On 1 Pin - 15A, On 2 Pins - 50A

Jumper 4 - On 1 Pin - 1 pump, On 2 Pins - 2 pumps

Jumper 6 - Used along with Jumper 2

Jumper 8 - On 1 Pin - Fahrenheit temp display, On 2 Pins - Celsius temp display
Circuit Board Application: Sundance
Circuit Board Model: J-LX, J-LXL
Circuit Board Type: New
Manufacturers Part Number: 6600-726




Replaces
_6600-288,6000-167,624803,6600-088,6600-088R,6600-288,SD6600-288,SD6600-726,
