Flow Meter/Check Valve, FlowVis, 1-1/2”s : FV-C-15

Flow Meter/Check Valve, FlowVis, 1-1/2”s
FlowVis® Flow Meter/Check Valve by H2Flow:

FlowVis® is the most advanced, affordable, and reliable precision flow meter designed specifically for pools, spas, fountains, and water features. But FlowVis® is more than just a flow meter it’s also a fully functioning check valve! Ingenious in concept and flawless in operation, FlowVis® is a revolution in reliable flow measurement. Unlike other flow meters, the position in which FlowVis® is installed (horizontal, vertical or relative to elbows and tees), has zero effect on its accuracy.



Combined flow meter and check valve – no calibration required
Installation flexibility. No plumbing restrictions for precise flow measurement. Install next to elbows, tees, etc. with little or no degradation in performance

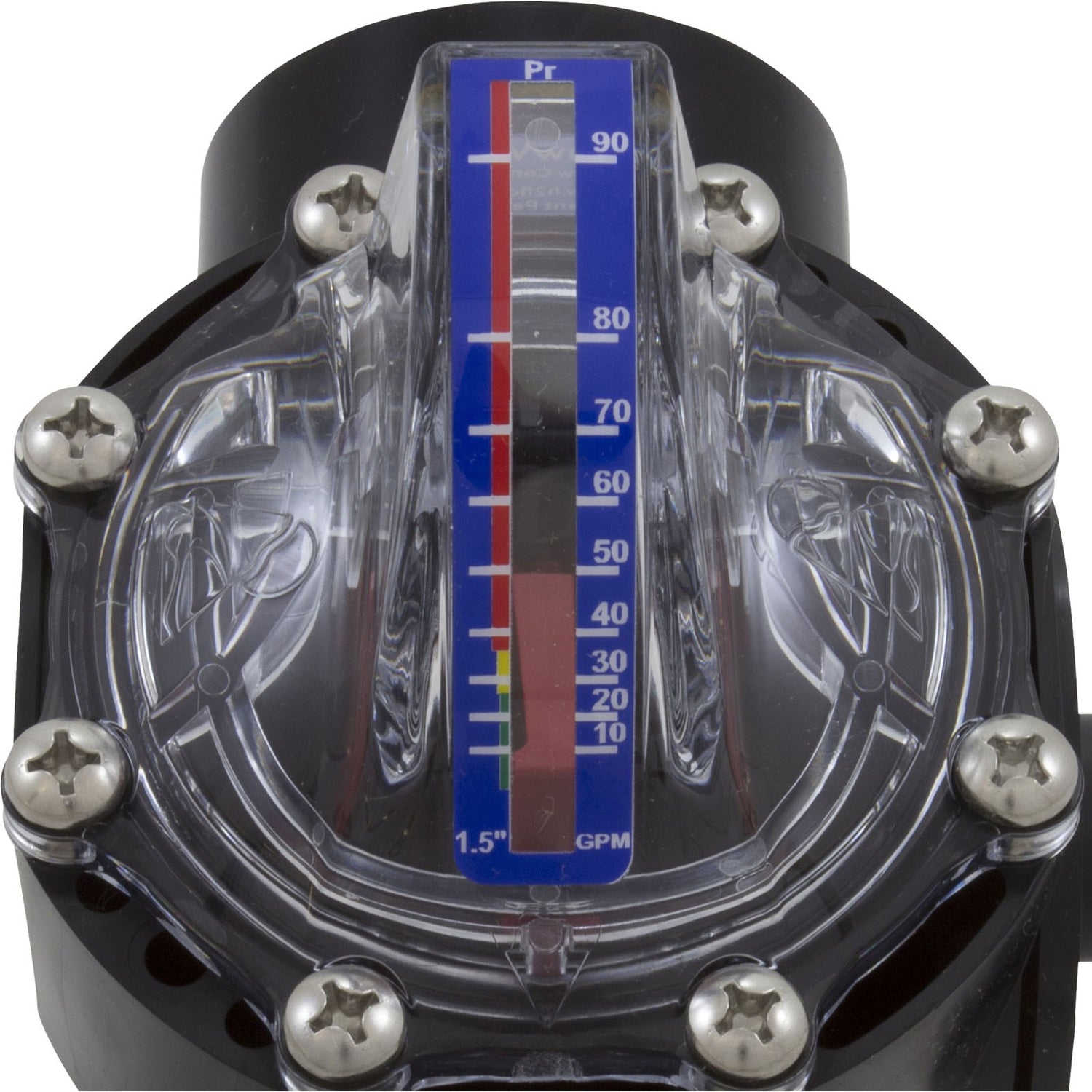

Clear, easy to read scale in GPM or optional LPM with key velocity points (FPS)
NSF Certified to 50 psi
Manufactured in the USA. Schedule 40 CPVC
5 year breakage warranty
Available in 3" and 4" Schedule 80 PVC versions
Built to last. There are no saddle clamps to corrode, flat rubber seals to deteriorate, or small holes to become blocked.
Available as a retrofit for an existing Jandy® or Praher check valve 26-042-1006
Plumbing Connection Size: 1-1/2", 2", 2-1/2"
Complete Check Valve: 180 Degree
Plumbing Connection Type: Slip (s), Spigot (spg)
Check Valve Application: Water
GPM Rating: 10-90gpm
Plumbing Size: 1-1/2", 2", 2-1/2"
Manufacturer: H2FlowPlumbing Type: Slip (s), Spigot (spg)Pipe Size: 1-1/2", 2", 2-1/2"Check Valve Type: Swing/Spring

Replaces
68252,EMO-561-1001,FLVFV15,
