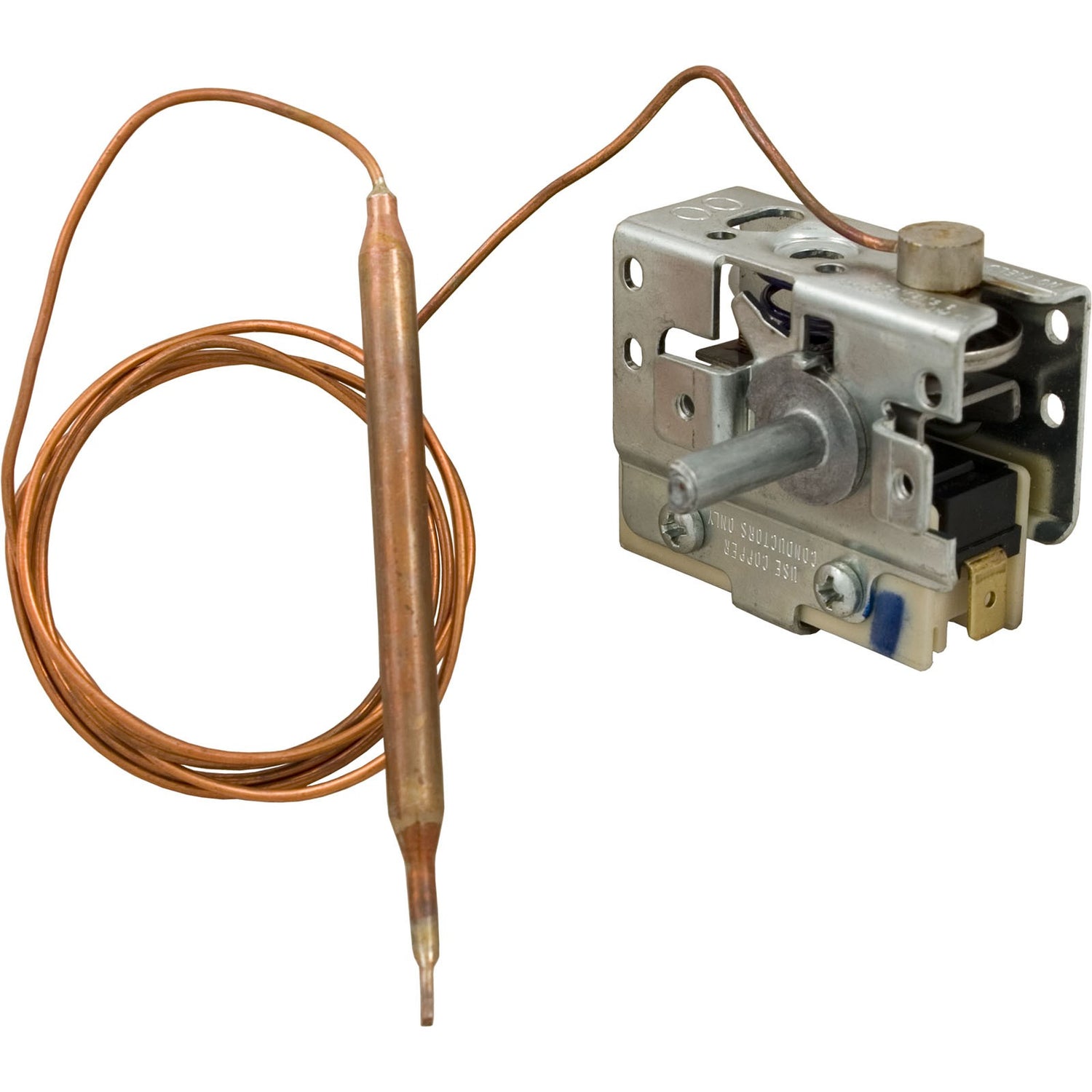

Thermostat, Invensys, 1/4", 36", SPST, 25A : 275-3124-00

Thermostat, Invensys, 1/4", 36", SPST, 25A
Thermostats
Single pole rated at 25 amps with max temp rating at 107°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one
Capillary Length: 36"
Bulb Thickness: 1/4"
Thermostat Type: Mechanical
Thermostat Application: Generic
Bulb Diameter: 1/4"
Bulb Length: 3-3/4"
Capillary Length: 36"
Thermostat Amperage: 25A
Electrical Connection: Slide Connector, 1/4" MalePole/Throw: Single Pole Single Throw (spst)

Replaces
610029,9135-03AD,IAC275312400,
