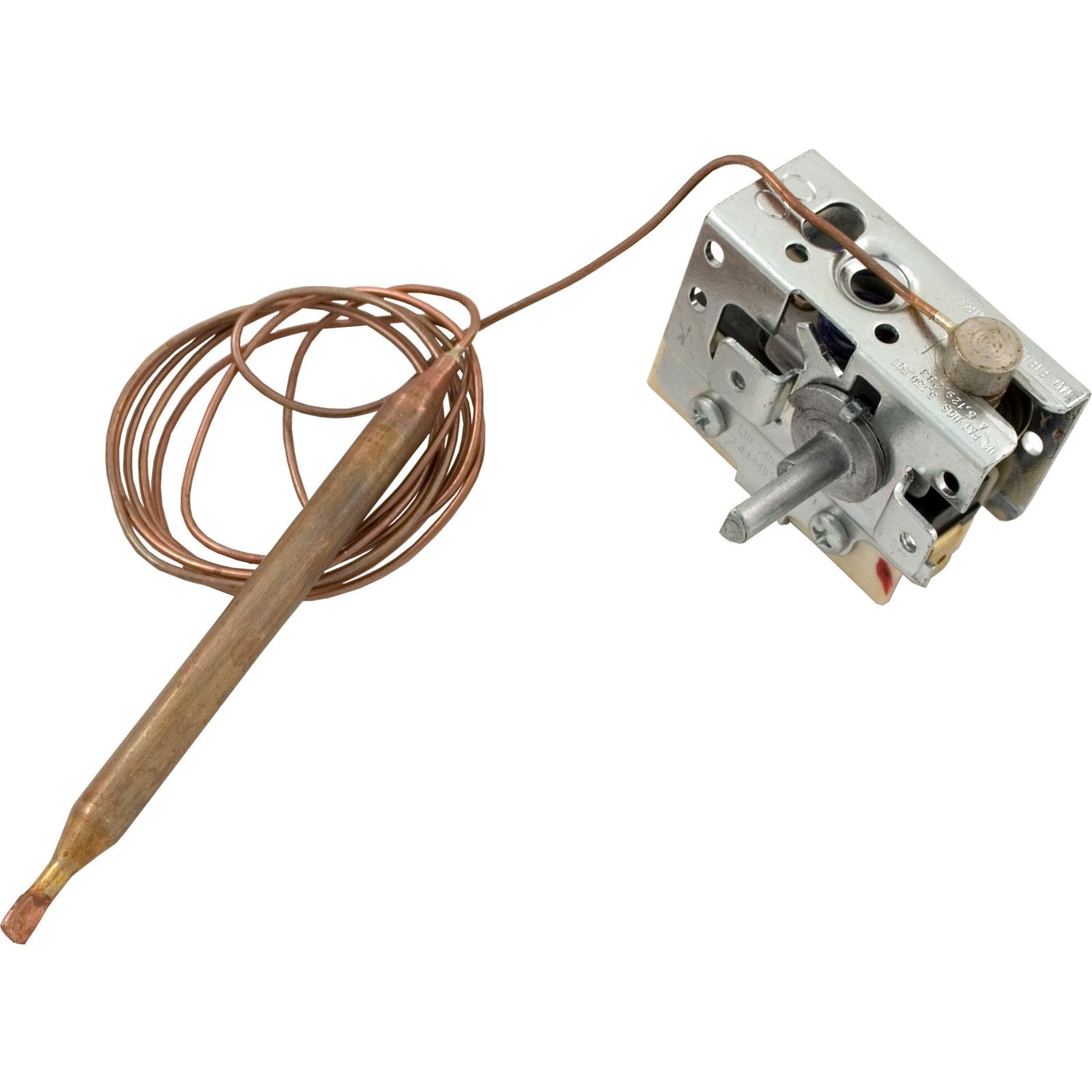

Thermostat, Invensys, 5/16", 48", SPST, 25A : 275-3183-00

Thermostat, Invensys, 5/16", 48", SPST, 25A
Thermostats
Single pole rated at 25 amps with max temp rating at 107°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one
Capillary Length: 48"
Bulb Thickness: 5/16"
Thermostat Type: Mechanical
Thermostat Application: Generic
Bulb Diameter: 5/16"
Bulb Length: 4-1/8"
Capillary Length: 48"
Thermostat Amperage: 25A
Electrical Connection: Slide Connector, 1/4" MalePole/Throw: Single Pole Single Throw (spst)

Replaces
2-05-0001,402474,9200-43B,IAC275318300,T-STAT5/16-48,
