Motor, US Motor Neptune, 1.65thp, SQFL, Var-Spd, 115/230v, 48Y : NPTQ165

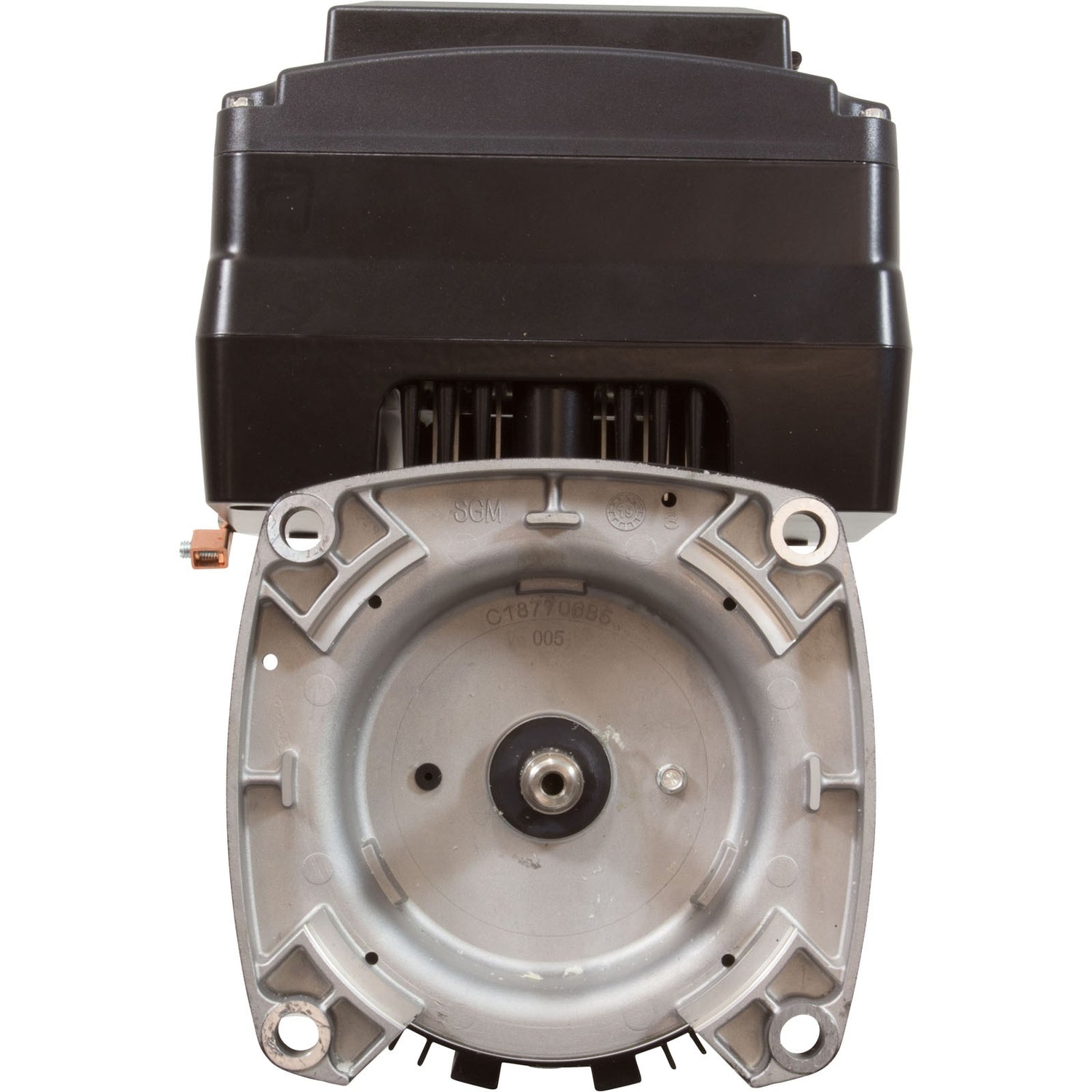

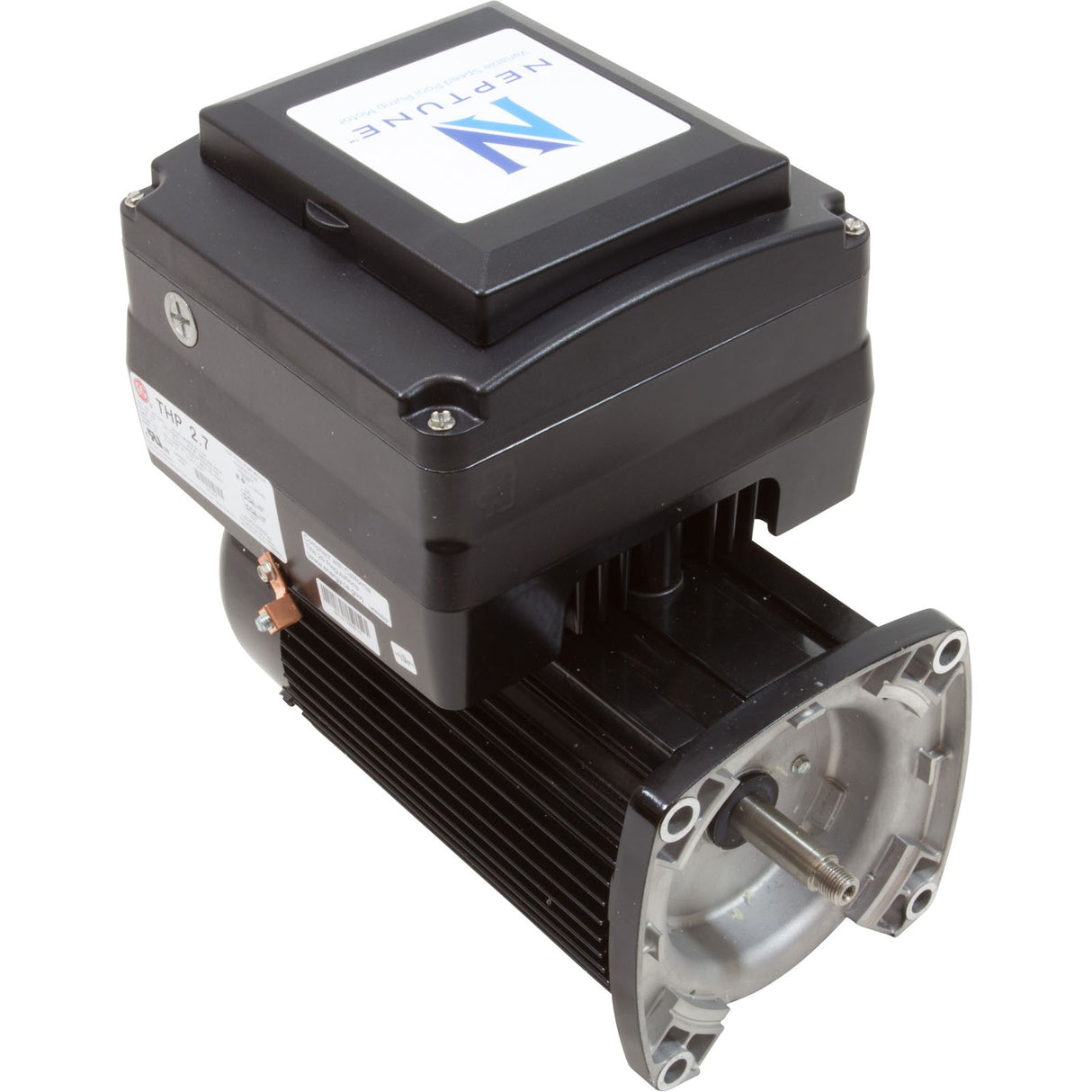

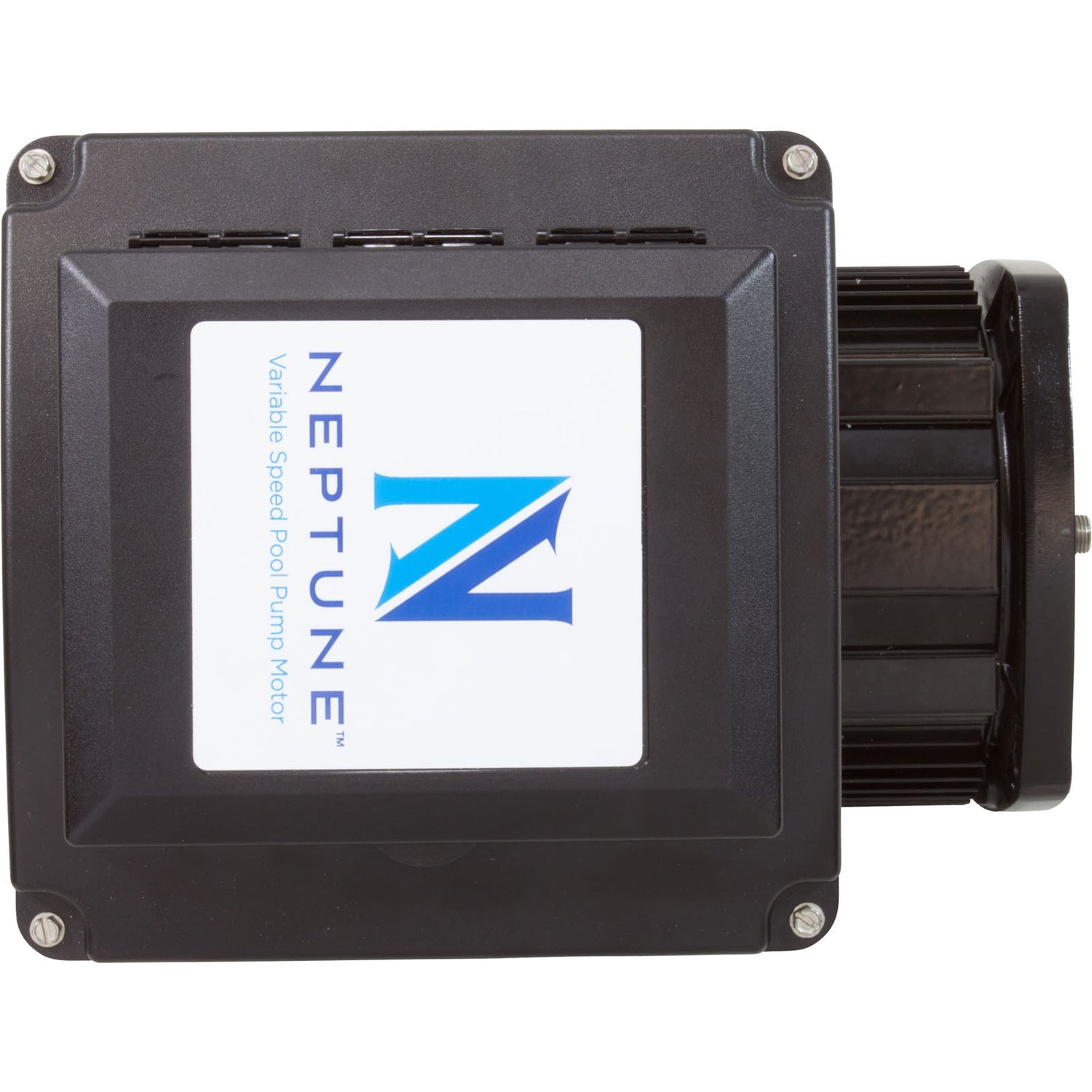

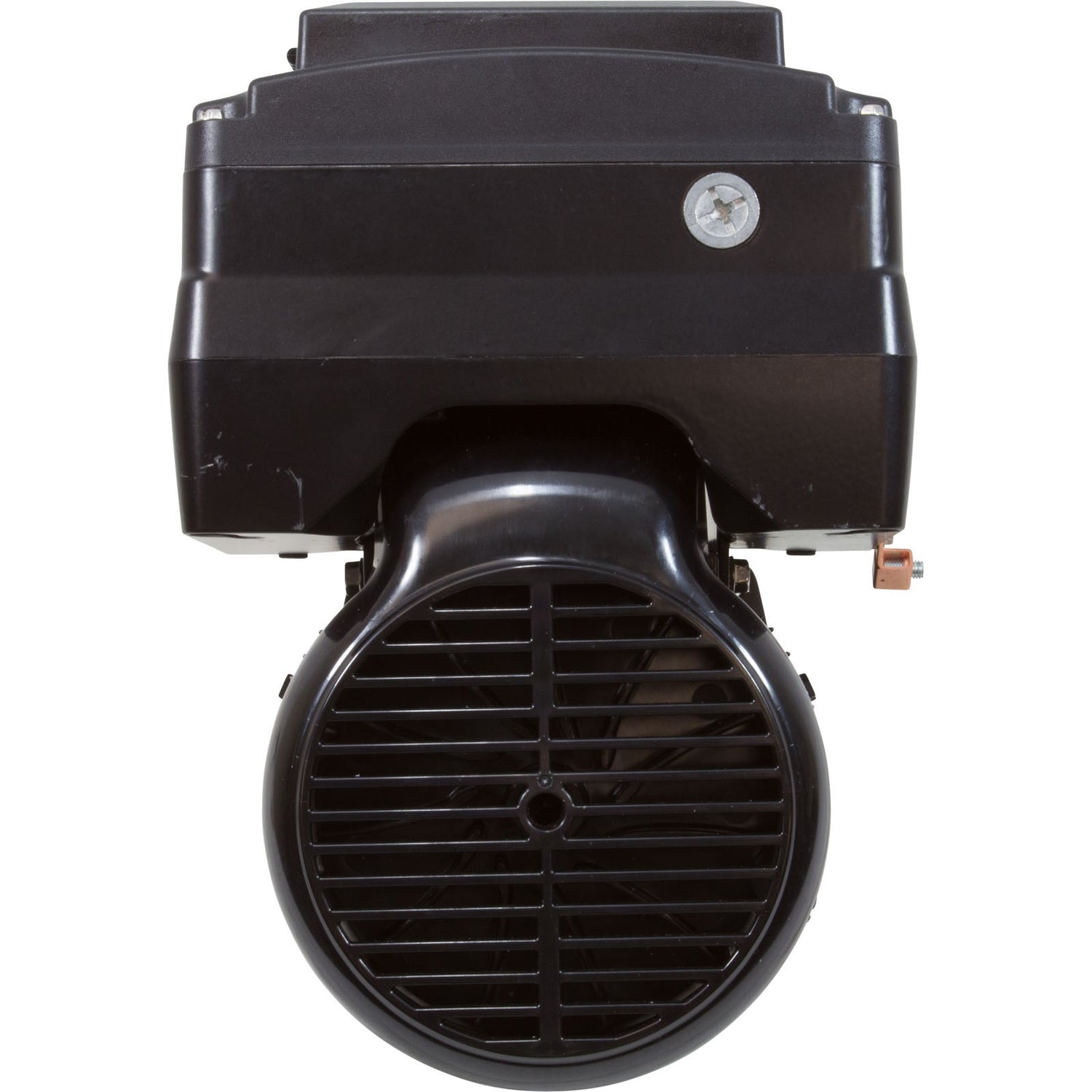

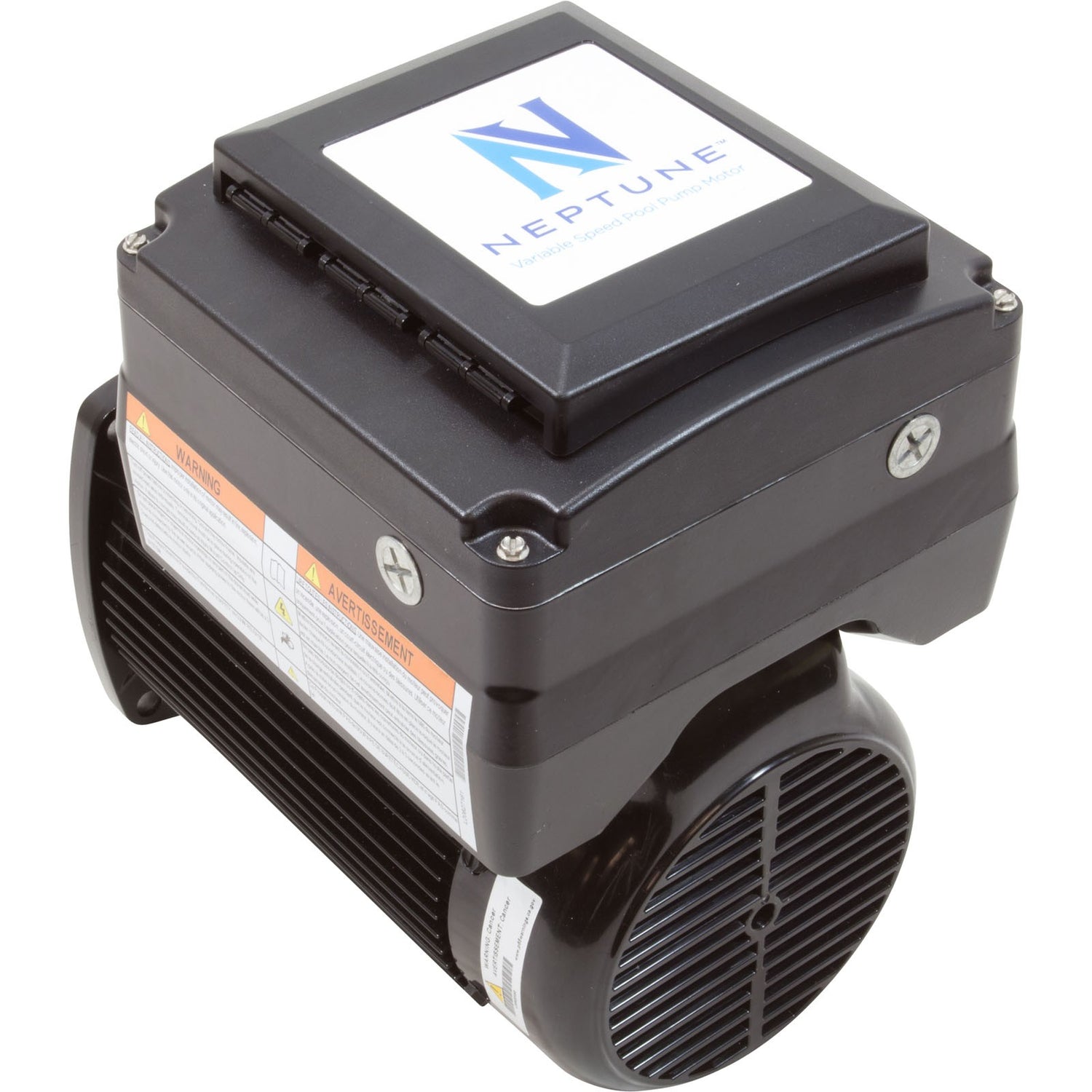

Motor, US Motor Neptune, 1.65thp, SQFL, Var-Spd, 115/230v, 48Y
The Neptune™ 1.65 Total Horsepower (THP) variable speed pool pump motor is a premium efficiency product that includes a fully integrated motor, control,
and user interface (UI). The product gives you programming flexibility and exceptional speed range capability. It is also designed to communicate and operate with
a variety of external system controls, in addition to the on-board User Interface.

FEATURES:

Efficiency: 1.65THP 81% at 3450 RPM
Enclosure: Finned Aluminum enclosure providing a Water Ingress Protection level of IPX5 for long field life in outdoor environmental conditions

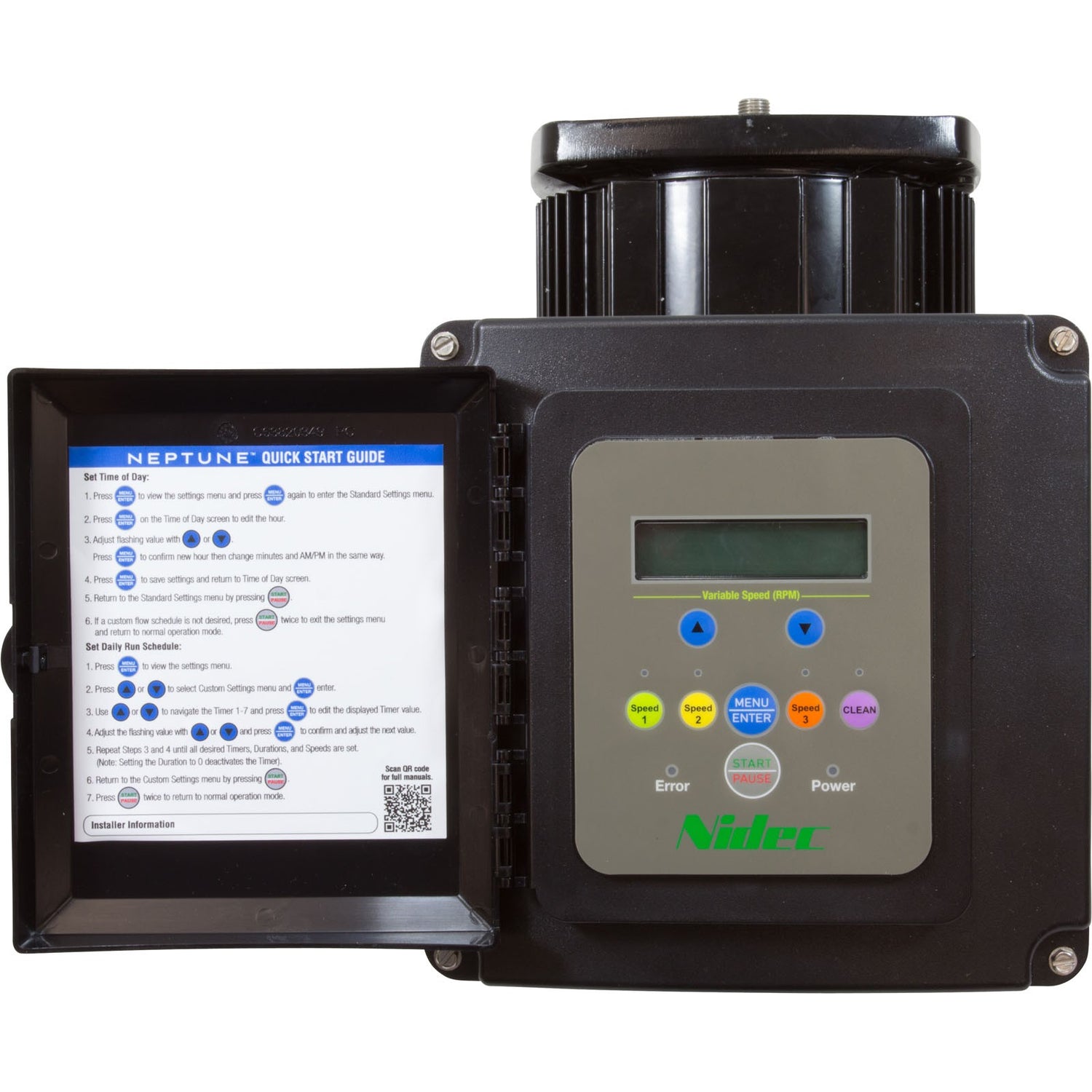

User Interface: Fully functional, easy to operate, capable of 90°, 180°, or 270° rotation
Rotation: Counter-clockwise (viewing motor shaft)
Low Temperature Monitor: Threshold temperature configurable in the UI
Fully Integrated: Designed for simple “Drop-In” installation with no complex wiring
Auxiliary Load Relay
Capable of communicating with specific pool control systems via MODBUS RTU
Capable of setting up to seven daily schedules
Adjustable priming time & speed
Menu keypad lockout
Designed for quiet operation
UL 1081 approved
Motor Type: Pool
Motor Amperage: 13.6A/6.8A
Voltage: 115v/230v
Frame Type: 48Y
Speed: Variable Speed (Var-Spd)
Total Horsepower: 1.65thp
Motor Shaft Type: ThreadedMotor Style: Square FlangeCapacitor On Top: NoManufacturer: Nidec-Motor-Corp/US-Motors

Replaces
38671,
