Pump, Aqua Flo XP2e, 4.0hp, 230v, 2-Spd, 56fr, 2", OEM : 05340009-5040

Pump, Aqua Flo XP2e, 4.0hp, 230v, 2-Spd, 56fr, 2", OEM

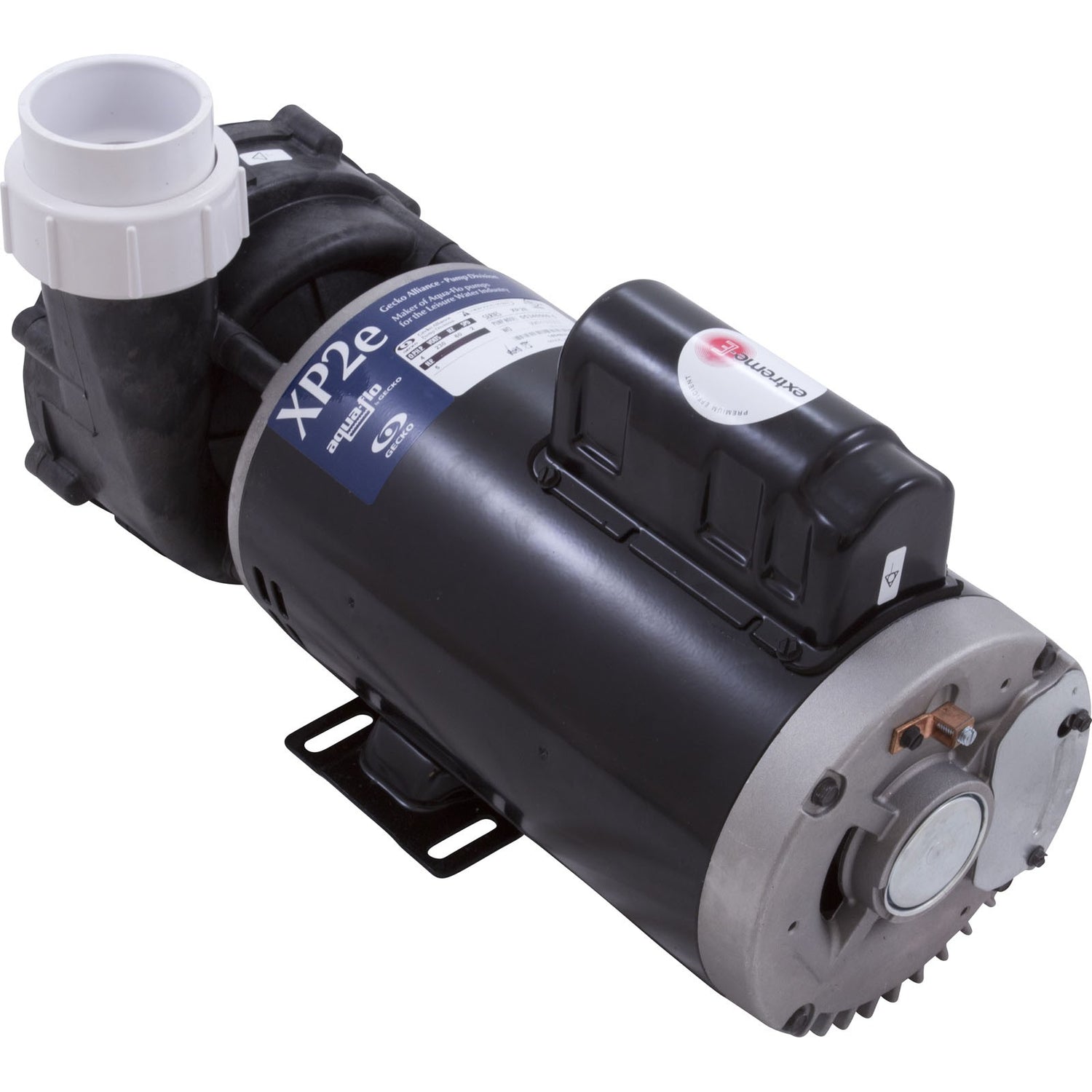

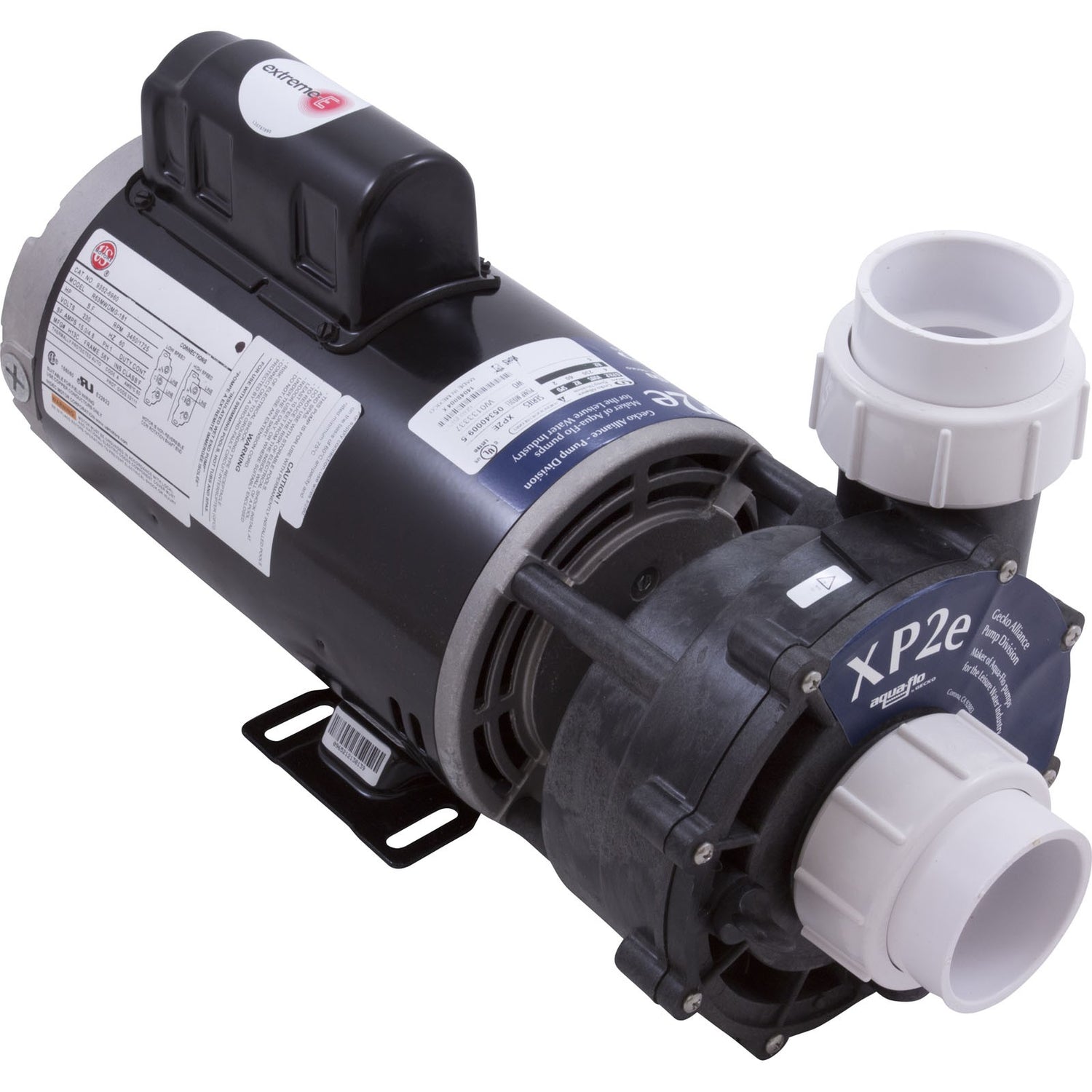

Aqua-Flo by Gecko's Flo-Master® XP2e pump is the energy conscious offering within its high performance spa pump line. It's designed for today's large, heavily jetted spas requiring increased flow. The XP2e pump fits within the same envelope as the original XP2 pump, yet provides greater flow while improving the overall energy efficiency of the spa.

Spa Pump Features:
Fine tuned impeller that moves water through the system with maximum performance

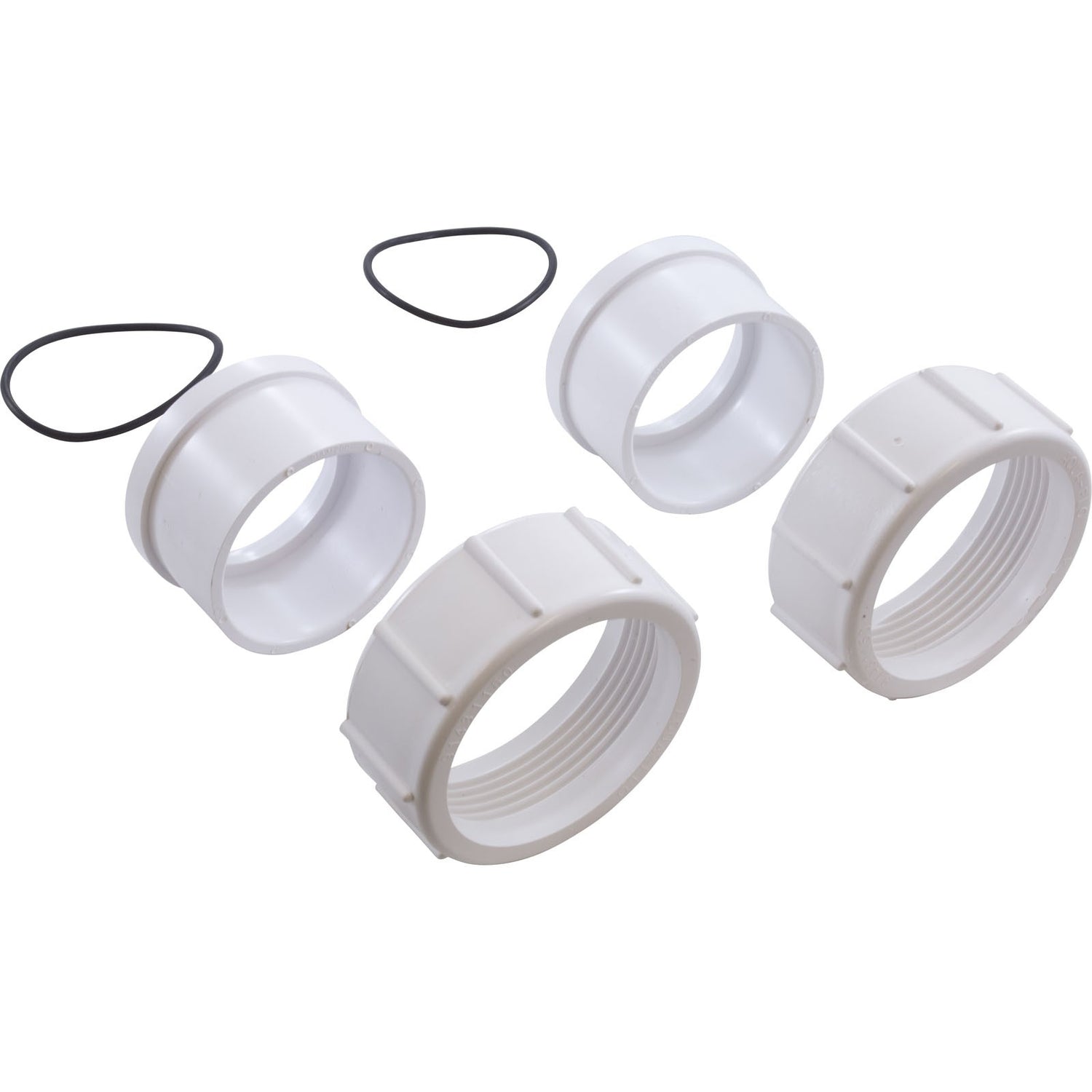

2" intake and discharge
56-frame motor for added strength
Thermally protected to extend life expectancy of motor
Continuous duty horsepower of 1.5hp, 2.0hp, 3.0hp, 4.0hp, and 5.0hp. Single or dual speed (SEE THE AVAILABLE STYLES TAB)

California Title 20 Compliant

In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.

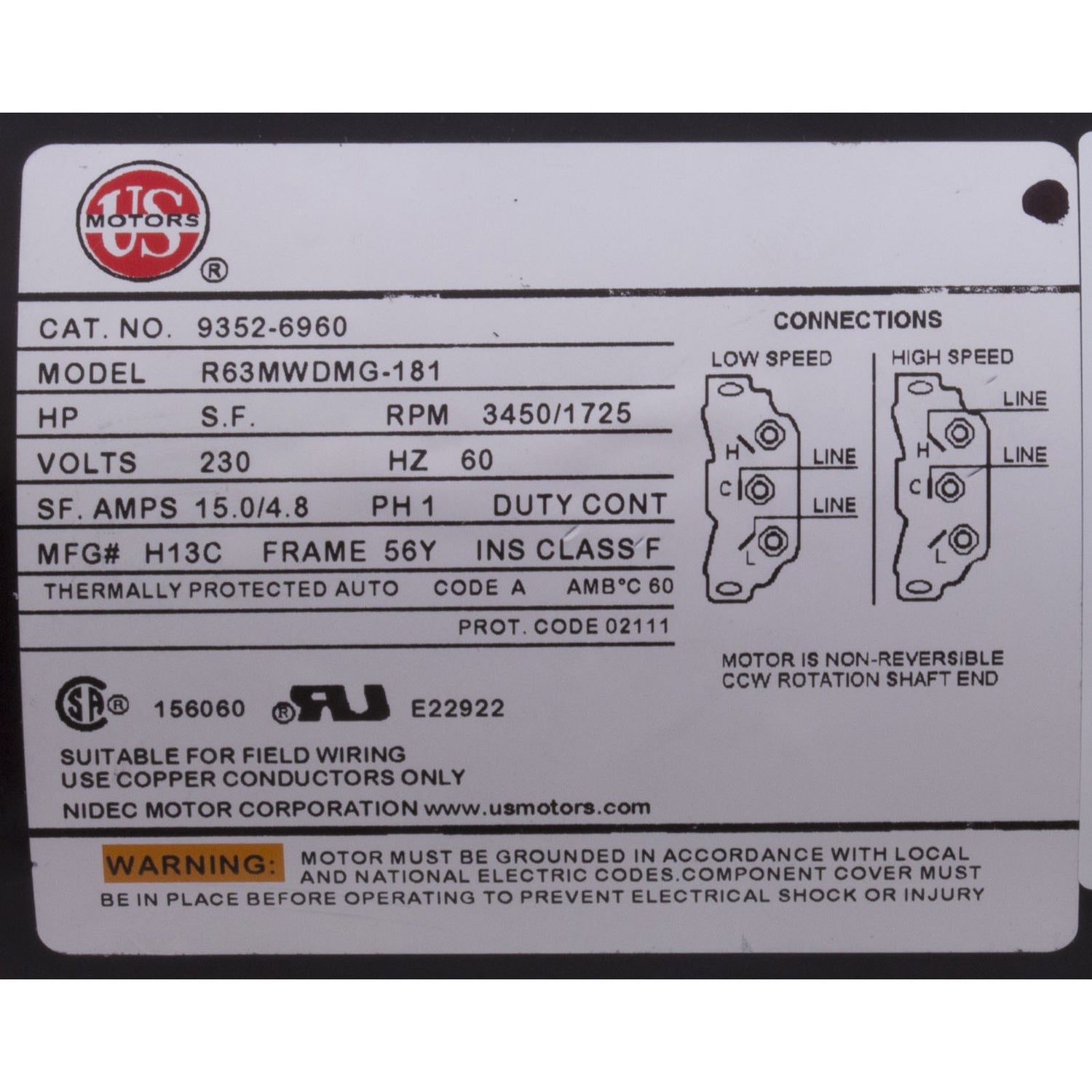

Motor Voltage: 230v
Speed: 2 Speed (2-Spd)
Motor Amperage/Wattage: 15.0A/4.8A
Horsepower: 4.0hp
Manufacturer: AquaFlo/Gecko
Pump Model: XP2e
Suction Pipe Size: 2"Suction Connection Type: Male Buttress Thread (mbt)Suction Style: CenterDischarge Pipe Size: 2"Discharge Connection Type: Male Buttress Thread (mbt)Discharge Style: SideMotor Frame: 56 Frame Thru-BoltDrain Plug Location: 4,6,9 o`clock

Replaces
05242000-2340,05242001-2340,05242002-2040,05242002-2340,05242003-2340,05242003-2370,05242004-2300,05242372-2340,05242372-2370,05242376-2370,05342000-2340,05342001-2040,05342001-2340,05342002-2340,05342003-2340,05342003-2370,05342004-2300,05342365-2340,05342365-2370,05342379-2370,05342792-2340,05740000-2361,05742372-2340,05820008-5040,05820008-5340,05820009-5040,05840000-2361,05840375-2040,05840375-2340,322837,R63MWDMG-181
