Impeller, Gecko AquaFlo FMHP/FMCP/TMCP/FMVP, 0.75ohp/1.0thp : 91693551

Impeller, Gecko AquaFlo FMHP/FMCP/TMCP/FMVP, 0.75ohp/1.0thp
AquaFlo/Gecko FMHP/FMCP/TMCP/FMVP Pump Impeller

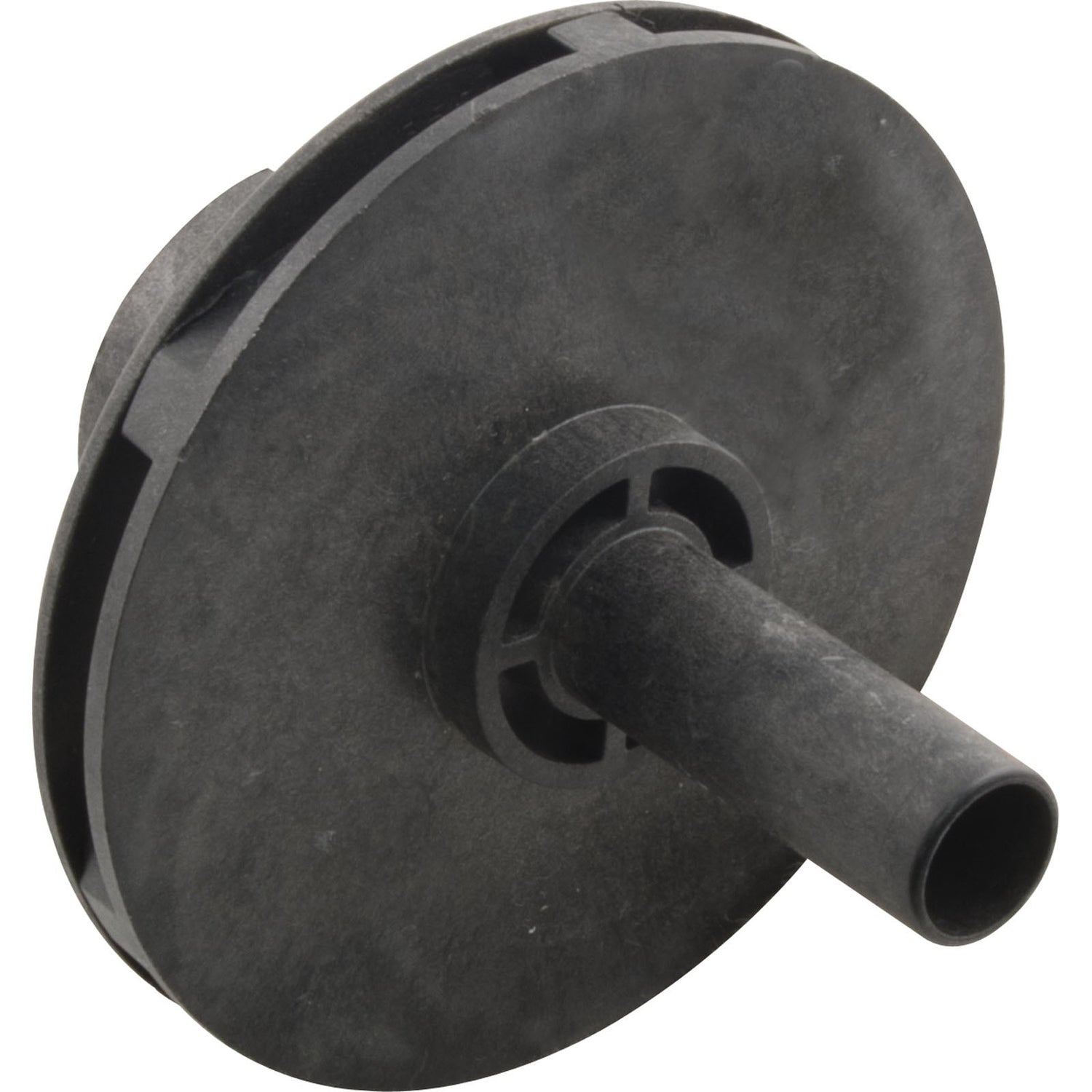

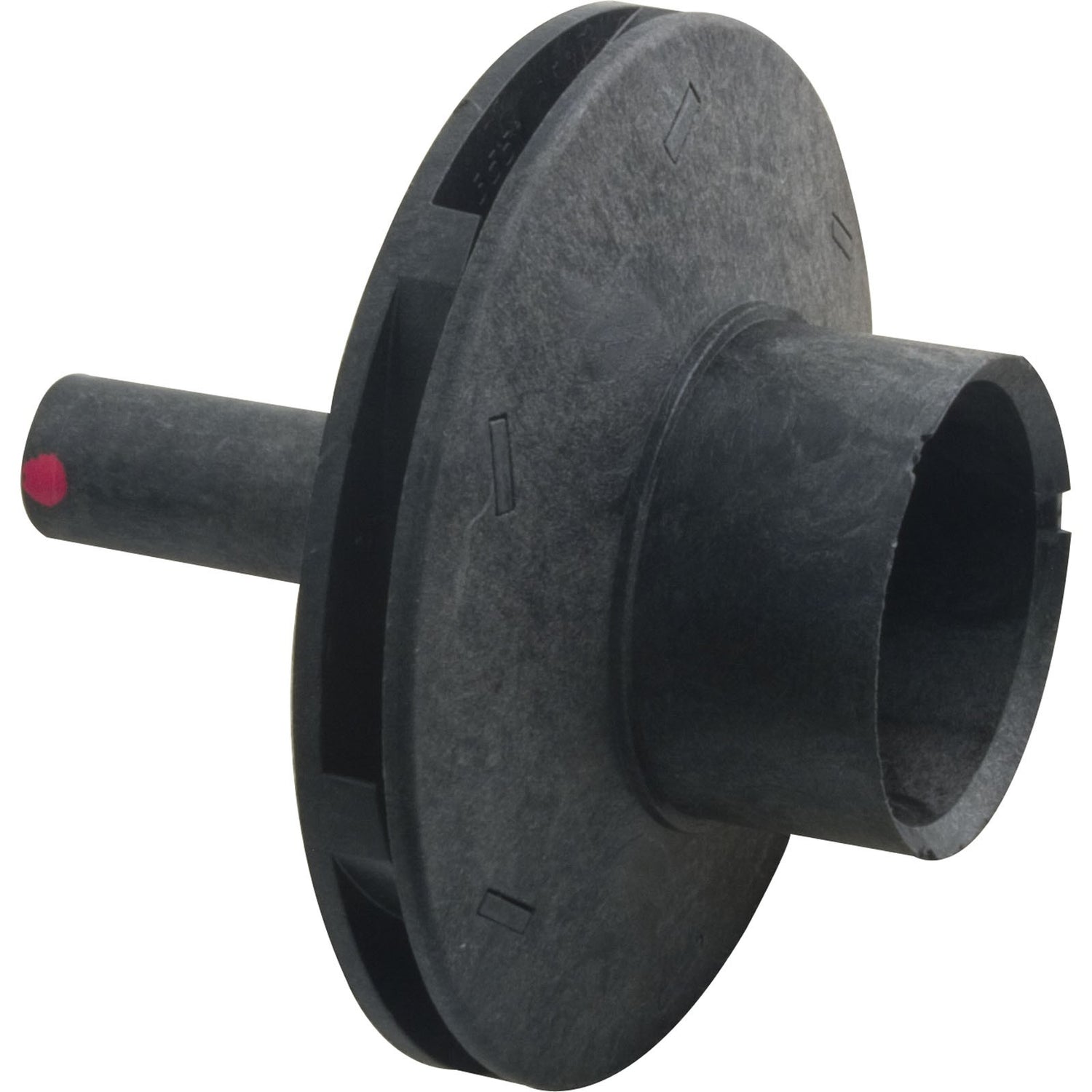

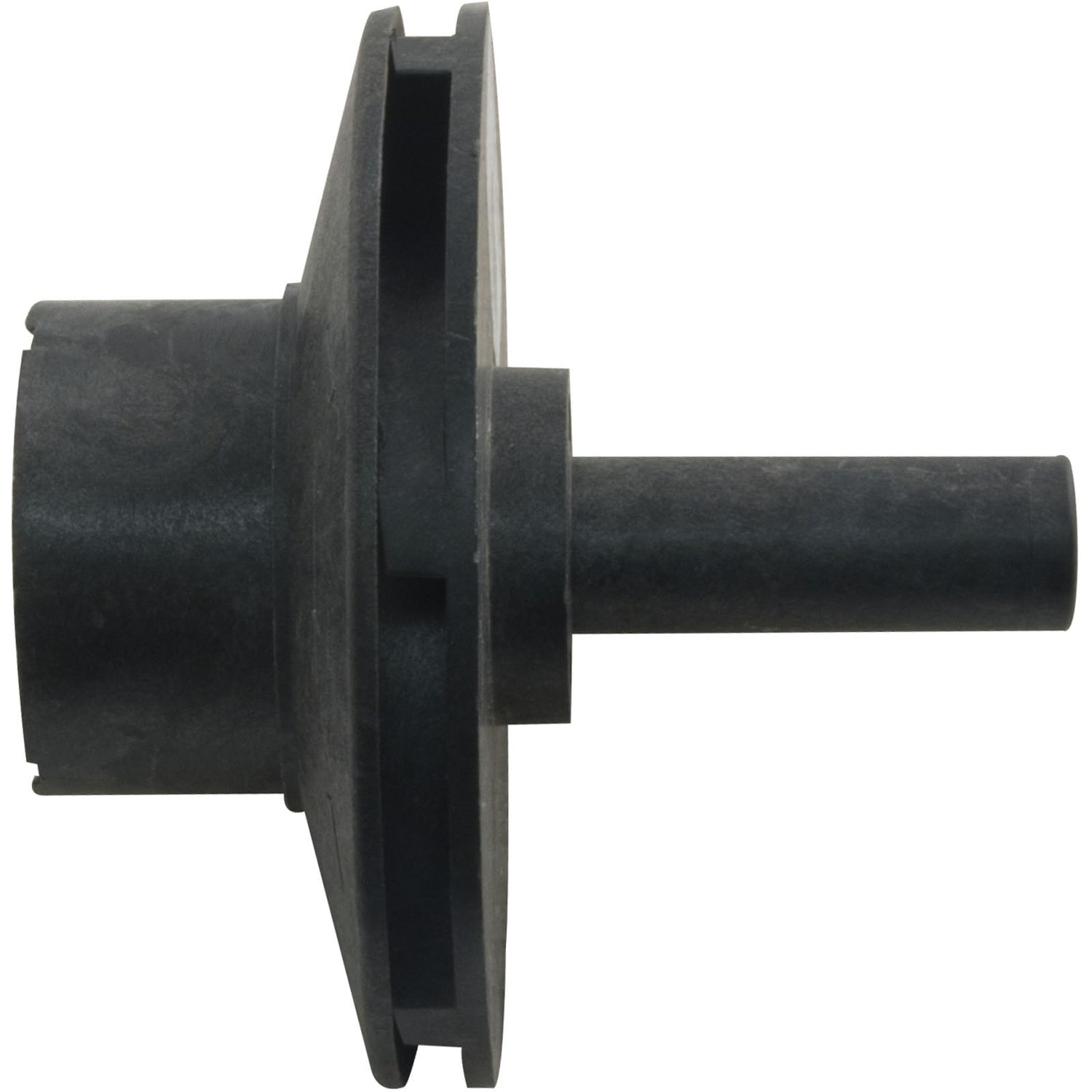

Closed face impeller made for the AquaFlo/Gecko FMHP, FMCP, FMVP, and TMCP series spa pumps by AquaFlo/Gecko. Rated at 3/4hp, it is used in a FMHP/CP, FMVP or TMCP wet end, and must be installed on a 3/4hp (or greater) thru bolt motor. Shaft seal sold separately


In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.
Impeller Type: Closed Face
Impeller Diameter OD: 3-3/4"
Vane Width ID: 3/16"
Eye Diameter OD: 1-3/4"
Eye Length: 15/16"
Impeller Width OD: 3/8"
Seal Seat Depth: 1/4"Shaft Length: 1-3/4"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-1/4"Manufacturer: AquaFlo/GeckoPump Application: FMCP, FMHP, FMVP, TMCP

Replaces
5121-06A,601110,AF91693551,AQF-101-6708,
