Impeller, Pentair Letro Booster, Old Style : LA02L

Impeller, Pentair Letro Booster, Old Style
California Residents WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

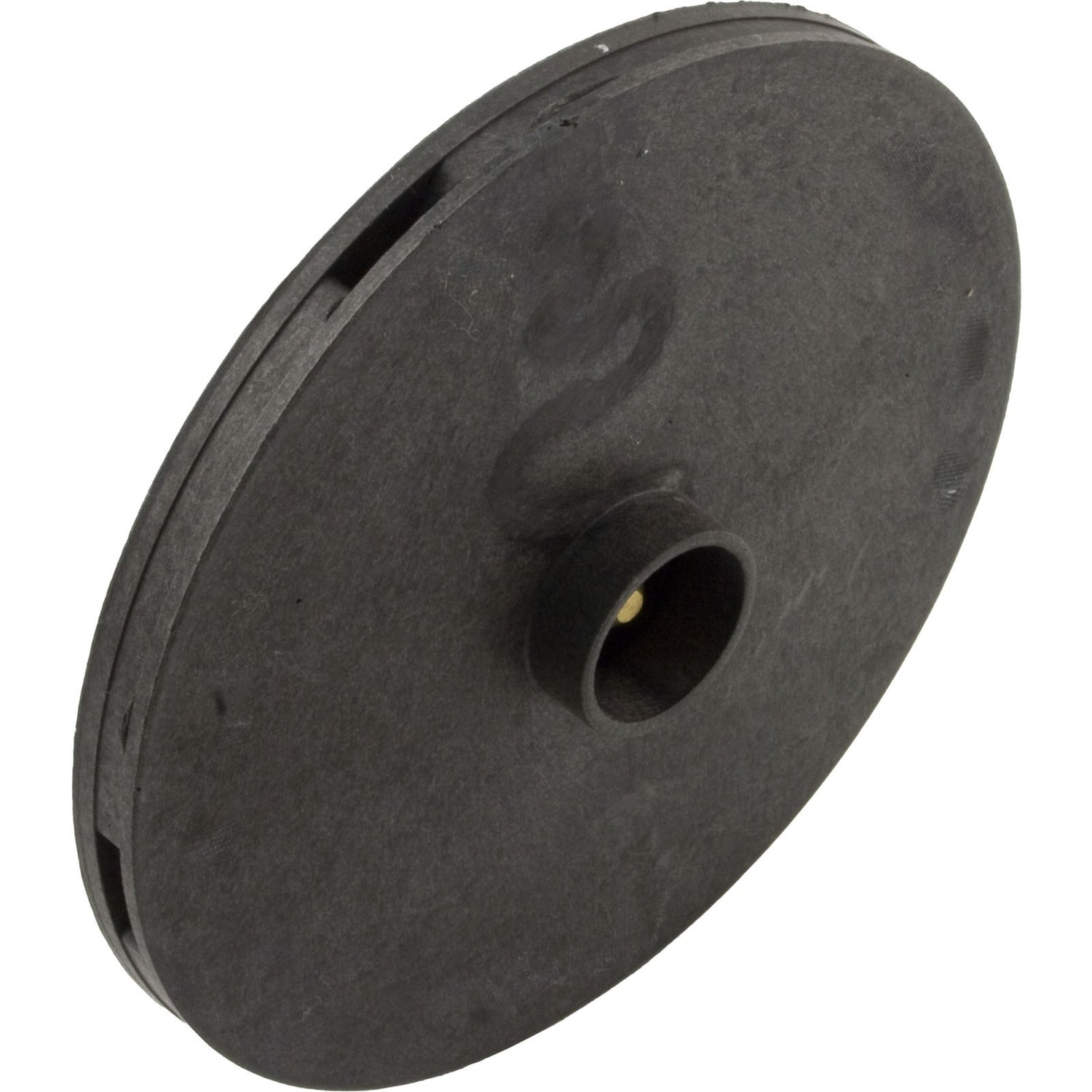

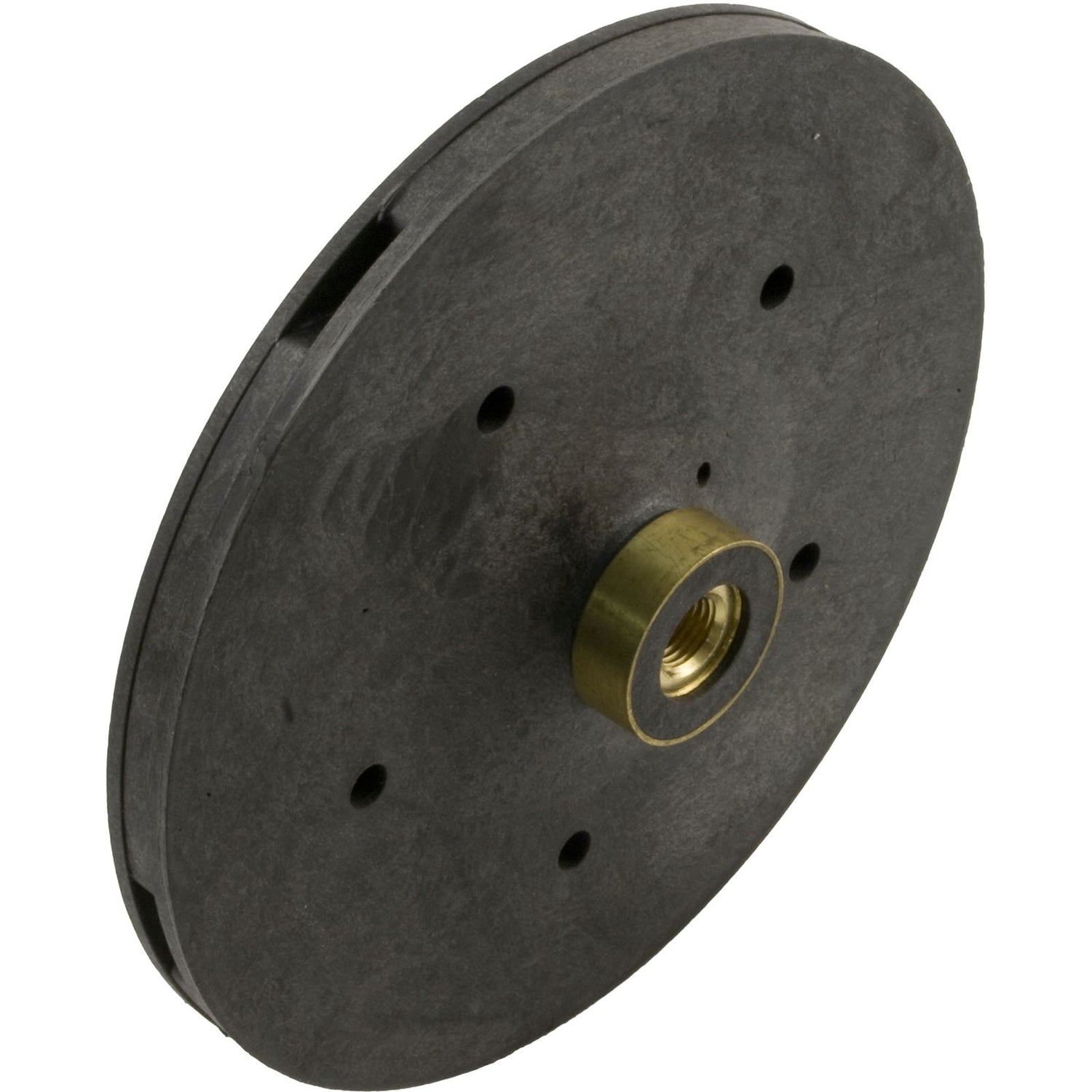

Letro Pentair Pump Impeller

Closed face impeller made for the Booster Pump by Letro/Pentair. Normally installed on a 3/4hp motor and exclusively used with the older version booster pump volute. This impeller has a shorter eye length and smaller eye diameter than the new version. It is also slightly bigger overall and thicker than the new style impeller. Shaft seal sold separately
Impeller Type: Closed Face
Impeller Diameter OD: 5-7/8"
Vane Width ID: 3/16"
Eye Diameter OD: 1-3/16"
Eye Length: 3/8"
Impeller Width OD: 7/16"
Seal Seat Depth: 5/8"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-1/8"Manufacturer: Letro/PentairPump Application: Letro Booster

Replaces
3250-A02L,58015,807318004832,LLA02L,VAL-201-1350,
